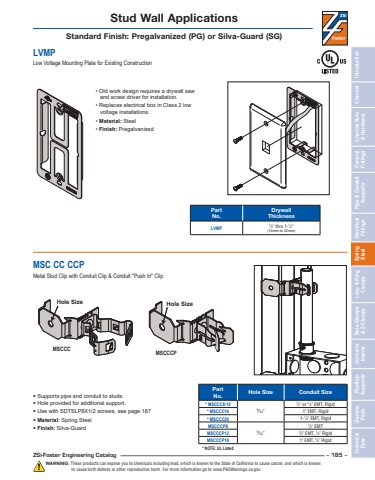

Technical Data Gamma Pads Rooftop Supports Concrete Inserts Beta Clamps & Z-Clamps Loop & Ring Clamps Spring Steel Electrical Fittings Pipe & Conduit Supports General Fittings Channel Nuts & Hardware Channel IntroductionZSi-Foster Engineering Catalog – 185 –WARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.LVMP Low Voltage Mounting Plate for Existing ConstructionMSC CC CCP Metal Stud Clip with Conduit Clip & Conduit \Part No.Drywall ThicknessLVMP 1⁄2\⁄4\(13mm to 32mm)• Old work design requires a drywall saw and screw driver for installation. • Replaces electrical box in Class 2 low voltage installations. • Material: Steel• Finish: PregalvanizedHole SizeMSCCCPHole SizeMSCCC• Supports pipe and conduit to studs.• Hole provided for additional support.• Use with SDTSLP8X1/2 screws, see page 187• Material: Spring Steel• Finish: Silva-Guard Part No. Hole Size Conduit Size* MSCCC8-129⁄32\1⁄2\⁄4\* MSCCC16 1\* MSCCC20 1-1⁄4\MSCCCP89⁄32\1⁄2\MSCCCP12 3⁄4\⁄2\MSCCCP16 1\⁄4\* NOTE: UL ListedStud Wall ApplicationsStandard Finish: Pregalvanized (PG) or Silva-Guard (SG)
