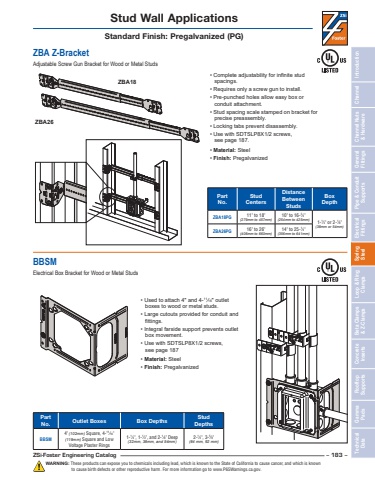

Technical Data Gamma Pads Rooftop Supports Concrete Inserts Beta Clamps & Z-Clamps Loop & Ring Clamps Spring Steel Electrical Fittings Pipe & Conduit Supports General Fittings Channel Nuts & Hardware Channel IntroductionZSi-Foster Engineering Catalog – 183 –WARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.ZBA Z-BracketAdjustable Screw Gun Bracket for Wood or Metal StudsZBA18ZBA26Part No.Stud CentersDistance Between StudsBox DepthZBA18PG 11\ to 18\(279mm to 457mm)10\⁄4\(254mm to 425mm) 1-1⁄2\⁄8\(38mm or 54mm)ZBA26PG 16\ to 26\(406mm to 660mm)14\⁄4\(356mm to 641mm)• Complete adjustability for infinite stud spacings. • Requires only a screw gun to install. • Pre-punched holes allow easy box or conduit attachment. • Stud spacing scale stamped on bracket for precise preassembly. • Locking tabs prevent disassembly.• Use with SDTSLP8X1/2 screws, see page 187.• Material: Steel• Finish: PregalvanizedBBSMElectrical Box Bracket for Wood or Metal StudsPart No. Outlet Boxes Box Depths Stud DepthsBBSM4\(119mm) Square and Low Voltage Plaster Rings1-1⁄4\⁄2\⁄8\(32mm, 38mm, and 54mm)2-1⁄2\⁄8\(64 mm, 92 mm)• Used to attach 4\boxes to wood or metal studs. • Large cutouts provided for conduit and fittings. • Integral farside support prevents outlet box movement. • Use with SDTSLP8X1/2 screws, see page 187• Material: Steel• Finish: PregalvanizedStud Wall ApplicationsStandard Finish: Pregalvanized (PG)
