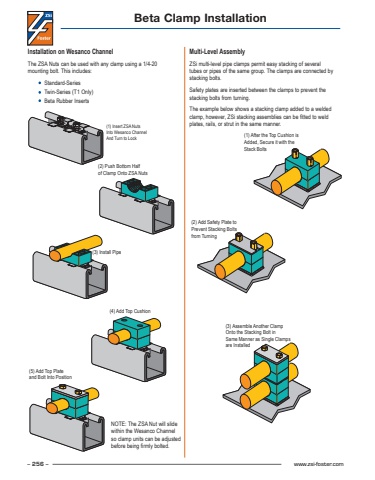

– 256 – www.zsi-foster.comMulti-Level AssemblyZSi multi-level pipe clamps permit easy stacking of several tubes or pipes of the same group. The clamps are connected by stacking bolts.Safety plates are inserted between the clamps to prevent the stacking bolts from turning.The example below shows a stacking clamp added to a welded clamp, however, ZSi stacking assemblies can be fitted to weld plates, rails, or strut in the same manner.Installation on Wesanco ChannelThe ZSA Nuts can be used with any clamp using a 1/4-20 mounting bolt. This includes:• Standard-Series• Twin-Series (T1 Only)• Beta Rubber Inserts(1) Insert ZSA NutsInto Wesanco ChannelAnd Turn to Lock(3) Install Pipe(4) Add Top Cushion(5) Add Top Plateand Bolt Into Position(2) Push Bottom Halfof Clamp Onto ZSA NutsNOTE: The ZSA Nut will slide within the Wesanco Channel so clamp units can be adjusted before being firmly bolted.(1) After the Top Cushion isAdded, Secure it with theStack Bolts(2) Add Safety Plate toPrevent Stacking Boltsfrom Turning(3) Assemble Another ClampOnto the Stacking Bolt inSame Manner as Single Clampsare InstalledBeta Clamp Installation
