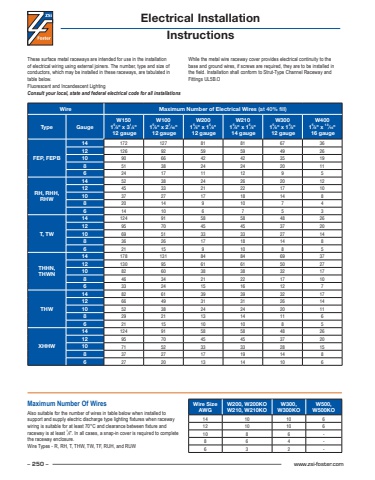

– 250 – www.zsi-foster.comThese surface metal raceways are intended for use in the installation of electrical wiring using external joiners. The number, type and size of conductors, which may be installed in these raceways, are tabulated in table below.Fluorescent and Incandescent LightingConsult your local, state and federal electrical code for all installationsWire Size AWGW200, W200KOW210, W210KOW300,W300KOW500, W500KO14 10 10 612 10 10 610 8 6 -8 6 4 -6 3 2 -Wire Maximum Number of Electrical Wires (at 40% fill)Type GaugeW15015⁄8\⁄4\ 12 gaugeW10015⁄8\⁄16\ 12 gaugeW20015⁄8\⁄8\ 12 gaugeW21015⁄8\⁄8\ 14 gaugeW30015⁄8\⁄8\ 12 gaugeW40015⁄8\ 16 gaugeFEP, FEPB14 172 127 81 81 67 3612 126 92 59 59 49 2610 90 66 42 42 35 198 51 38 24 24 20 116 24 17 11 12 9 5RH, RHH, RHW14 52 38 24 26 20 1212 45 33 21 22 17 1010 37 27 17 18 14 88 20 14 9 10 7 46 14 10 6 7 5 3T, TW14 124 91 58 58 48 2612 95 70 45 45 37 2010 69 51 33 33 27 148 36 26 17 18 14 86 21 15 9 10 8 5THHN, THWN14 178 131 84 84 69 3712 130 95 61 61 50 2710 82 60 38 38 32 178 46 34 21 22 17 106 33 24 15 16 12 7THW14 82 61 39 39 32 1712 66 49 31 31 26 1410 52 38 24 24 20 118 29 21 13 14 11 66 21 15 10 10 8 5XHHW14 124 91 58 58 48 2612 95 70 45 45 37 2010 71 52 33 33 28 158 37 27 17 19 14 86 27 20 13 14 10 6Electrical InstallationInstructionsWhile the metal wire raceway cover provides electrical continuity to the base and ground wires, if screws are required, they are to be installed in the field. Installation shall conform to Strut-Type Channel Raceway and Fittings UL5B.OMaximum Number Of WiresAlso suitable for the number of wires in table below when installed to support and supply electric discharge type lighting fixtures when raceway wiring is suitable for at least 70°C and clearance between fixture and raceway is at least 1⁄8\the raceway enclosure. Wire Types - R, RH, T, THW, TW, TF, RUH, and RUW
