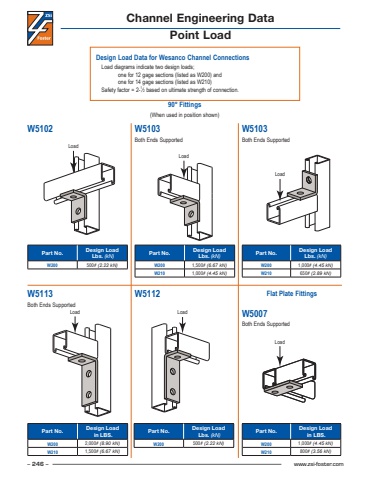

– 246 – www.zsi-foster.comChannel Engineering DataPoint LoadPart No. Design LoadLbs. (kN)W200 1,500# (6.67 kN)W210 1,000# (4.45 kN)Part No. Design Load Lbs. (kN)W200 500# (2.22 kN)Part No. Design Load Lbs. (kN)W200 500# (2.22 kN)Part No. Design LoadLbs. (kN)W200 1,000# (4.45 kN)W210 650# (2.89 kN)Part No. Design Load in LBS.W200 2,000# (8.90 kN)W210 1,500# (6.67 kN)90° Fittings(When used in position shown)W5102W5112W5103Both Ends SupportedW5103Both Ends SupportedW5113Both Ends SupportedPart No. Design Load in LBS.W200 1,000# (4.45 kN)W210 800# (3.56 kN)Flat Plate FittingsW5007Both Ends SupportedDesign Load Data for Wesanco Channel ConnectionsLoad diagrams indicate two design loads;one for 12 gage sections (listed as W200) and one for 14 gage sections (listed as W210)Safety factor = 2-1⁄2 based on ultimate strength of connection.LoadLoadLoadLoad LoadLoad
