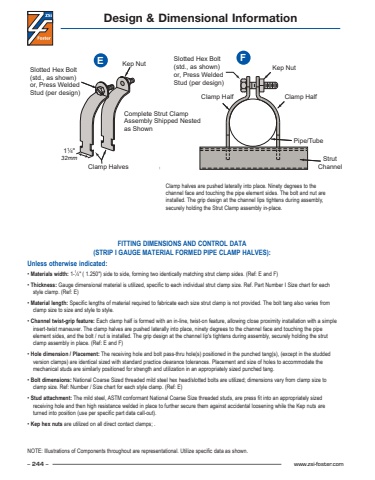

                                    – 244 – www.zsi-foster.comFITTING DIMENSIONS AND CONTROL DATA (STRIP I GAUGE MATERIAL FORMED PIPE CLAMP HALVES): Unless otherwise indicated:• Materials width: 1-1⁄4\• Thickness: Gauge dimensional material is utilized, specific to each individual strut clamp size. Ref. Part Number I Size chart for each style clamp. (Ref: E)• Material length: Specific lengths of material required to fabricate each size strut clamp is not provided. The bolt tang also varies from clamp size to size and style to style.• Channel twist-grip feature: Each clamp half is formed with an in-line, twist-on feature, allowing close proximity installation with a simple insert-twist maneuver. The clamp halves are pushed laterally into place, ninety degrees to the channel face and touching the pipe element sides, and the bolt / nut is installed. The grip design at the channel Iip's tightens during assembly, securely holding the strut clamp assembly in place. (Ref: E and F)• Hole dimension / Placement: The receiving hole and bolt pass-thru hole(s) positioned in the punched tang(s), (except in the studded version clamps) are identical sized with standard practice clearance tolerances. Placement and size of holes to accommodate the mechanical studs are similarly positioned for strength and utilization in an appropriately sized punched tang.• Bolt dimensions: National Coarse Sized threaded mild steel hex head/slotted bolts are utilized; dimensions vary from clamp size to clamp size. Ref: Number / Size chart for each style clamp. (Ref: E)• Stud attachment: The mild steel, ASTM conformant National Coarse Size threaded studs, are press fit into an appropriately sized receiving hole and then high resistance welded in place to further secure them against accidental loosening while the Kep nuts are turned into position (use per specific part data call-out).• Kep hex nuts are utilized on all direct contact clamps; .Design & Dimensional InformationNOTE: Illustrations of Components throughout are representational. Utilize specific data as shown. Clamp halves are pushed laterally into place. Ninety degrees to the channel face and touching the pipe element sides. The bolt and nut are installed. The grip design at the channel Iips tightens during assembly, securely holding the Strut Clamp assembly in-place.Kep Nut Kep NutClamp Half Clamp HalfClamp Halves11⁄4\32mmComplete Strut ClampAssembly Shipped Nestedas ShownSlotted Hex Bolt(std., as shown)or, Press WeldedStud (per design)Slotted Hex Bolt(std., as shown)or, Press WeldedStud (per design)Pipe/TubeStrutChannelE F
