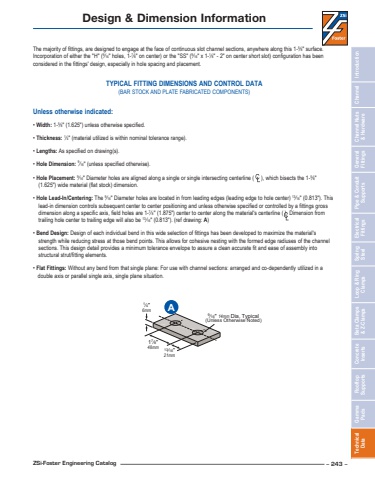

ZSi-Foster Engineering Catalog – 243 –Technical Data Gamma Pads Rooftop Supports Concrete Inserts Beta Clamps & Z-Clamps Loop & Ring Clamps Spring Steel Electrical Fittings Pipe & Conduit Supports General Fittings Channel Nuts & Hardware Channel Introduction9⁄16\ 14mm Dia. Typical(Unless Otherwise Noted)17⁄8\48mm 13⁄16\21mm1⁄4\ 6mmDesign & Dimension InformationThe majority of fittings, are designed to engage at the face of continuous slot channel sections, anywhere along this 1-5⁄8\Incorporation of either the \⁄16\⁄8\⁄16\⁄8\considered in the fittings' design, especially in hole spacing and placement.TYPICAL FITTING DIMENSIONS AND CONTROL DATA(BAR STOCK AND PLATE FABRICATED COMPONENTS)Unless otherwise indicated:• Width: 1-5⁄8\• Thickness: 1⁄4\• Lengths: As specified on drawing(s).• Hole Dimension: 9⁄16\• Hole Placement: 9⁄16\), which bisects the 1-5⁄8\(1.625\• Hole Lead-In/Centering: The 9⁄16\This lead-in dimension controls subsequent center to center positioning and unless otherwise specified or controlled by a fittings gross dimension along a specific axis, field holes are 1-7⁄ 8\trailing hole center to trailing edge will also be 13⁄16\• Bend Design: Design of each individual bend in this wide selection of fittings has been developed to maximize the material's strength while reducing stress at those bend points. This allows for cohesive nesting with the formed edge radiuses of the channel sections. This design detail provides a minimum tolerance envelope to assure a clean accurate fit and ease of assembly into structural strut/fitting elements. • Flat Fittings: Without any bend from that single plane: For use with channel sections: arranged and co-dependently utilized in a double axis or parallel single axis, single plane situation.A
