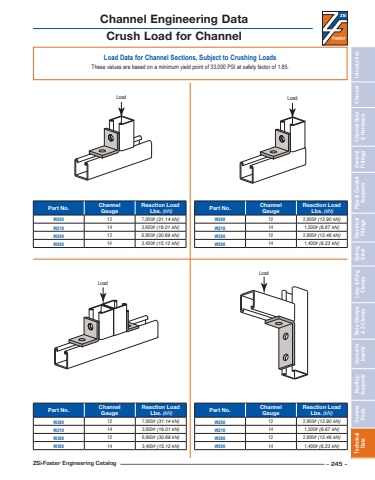

ZSi-Foster Engineering Catalog – 245 –Technical Data Gamma Pads Rooftop Supports Concrete Inserts Beta Clamps & Z-Clamps Loop & Ring Clamps Spring Steel Electrical Fittings Pipe & Conduit Supports General Fittings Channel Nuts & Hardware Channel IntroductionChannel Engineering DataCrush Load for ChannelLoad Data for Channel Sections, Subject to Crushing LoadsThese values are based on a minimum yield point of 33,000 PSI at safety factor of 1.85.Part No. Channel GaugeReaction Load Lbs. (kN)W200 12 7,000# (31.14 kN)W210 14 3,600# (16.01 kN)W300 12 6,900# (30.69 kN)W500 14 3,400# (15.12 kN)Part No. Channel GaugeReaction Load Lbs. (kN)W200 12 2,900# (12.90 kN)W210 14 1,500# (6.67 kN)W300 12 2,800# (12.46 kN)W500 14 1,400# (6.23 kN)Part No. Channel GaugeReaction Load Lbs. (kN)W200 12 7,000# (31.14 kN)W210 14 3,600# (16.01 kN)W300 12 6,900# (30.69 kN)W500 14 3,400# (15.12 kN)Part No. Channel GaugeReaction LoadLbs. (kN)W200 12 2,900# (12.90 kN)W210 14 1,500# (6.67 kN)W300 12 2,800# (12.46 kN)W500 14 1,400# (6.23 kN)Load LoadLoadLoad
