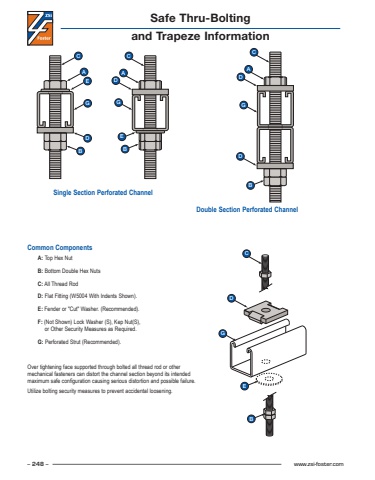

– 248 – www.zsi-foster.comSafe Thru-Bolting and Trapeze InformationCommon ComponentsA: Top Hex NutB: Bottom Double Hex NutsC: All Thread RodD: Flat Fitting (W5004 With Indents Shown).E: Fender or \F: (Not Shown) Lock Washer (S), Kep Nut(S), or Other Security Measures as Required.G: Perforated Strut (Recommended).Single Section Perforated ChannelOver tightening face supported through bolted all thread rod or other mechanical fasteners can distort the channel section beyond its intended maximum safe configuration causing serious distortion and possible failure. Utilize bolting security measures to prevent accidental loosening.Double Section Perforated ChannelACACEEB BDDG GACBDDGCBEDG
