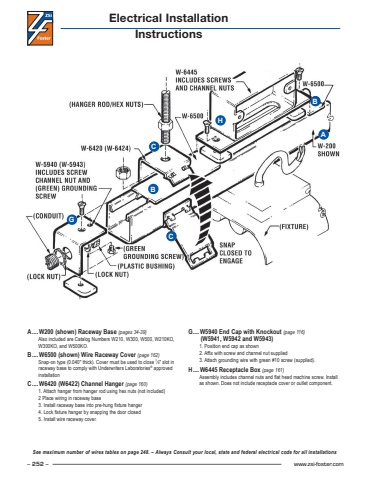

– 252 – www.zsi-foster.comElectrical InstallationInstructionsA ....W200 (shown) Raceway Base (pages 34-39)Also included are Catalog Numbers W210, W300, W500, W210KO, W300KO, and W500KO.B ....W6500 (shown) Wire Raceway Cover (page 162)Snap-on type (0.040\⁄8\raceway base to comply with Underwriters Laboratories® approved installationC ....W6420 (W6422) Channel Hanger (page 160)1. Attach hanger from hanger rod using hex nuts (not included)2 Place wiring in raceway base3. Install raceway base into pre-hung fixture hanger4. Lock fixture hanger by snapping the door closed5. Install wire raceway cover. G ....W5940 End Cap with Knockout (page 116)(W5941, W5942 and W5943)1. Position end cap as shown2. Affix with screw and channel nut supplied3. Attach grounding wire with green #10 screw (supplied).H ....W6445 Receptacle Box (page 161)Assembly includes channel nuts and flat head machine screw. Install as shown. Does not include receptacle cover or outlet component.See maximum number of wires tables on page 248. – Always Consult your local, state and federal electrical code for all installationsGBBCHCA
