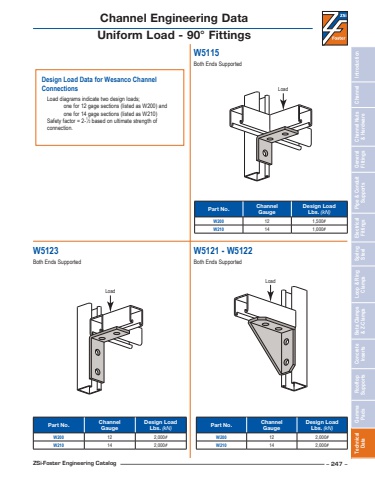

ZSi-Foster Engineering Catalog – 247 –Technical Data Gamma Pads Rooftop Supports Concrete Inserts Beta Clamps & Z-Clamps Loop & Ring Clamps Spring Steel Electrical Fittings Pipe & Conduit Supports General Fittings Channel Nuts & Hardware Channel IntroductionChannel Engineering DataUniform Load - 90° FittingsPart No. Channel GaugeDesign LoadLbs. (kN)W200 12 2,000#W210 14 2,000#W5123 Both Ends SupportedW5121 - W5122Both Ends SupportedDesign Load Data for Wesanco Channel ConnectionsLoad diagrams indicate two design loads;one for 12 gage sections (listed as W200) and one for 14 gage sections (listed as W210)Safety factor = 2-1⁄2 based on ultimate strength of connection.Part No. Channel GaugeDesign LoadLbs. (kN)W200 12 2,000#W210 14 2,000#Part No. Channel GaugeDesign LoadLbs. (kN)W200 12 1,500#W210 14 1,000#W5115Both Ends SupportedLoadLoadLoad
