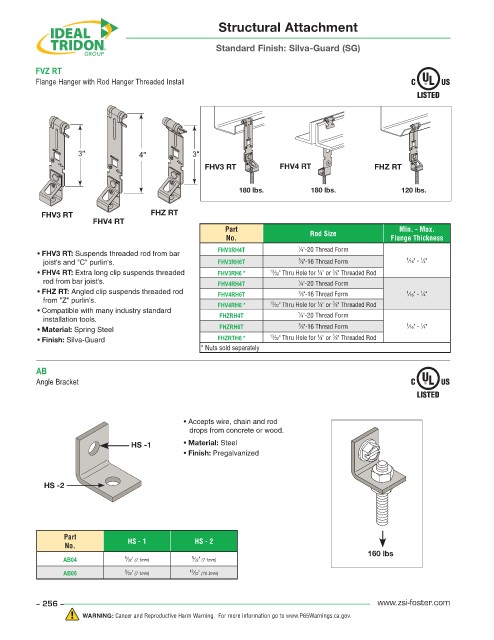

Page 256 - ZSi-Foster Product Catalog

Structural Attachment

Standard Finish: Silva-Guard (SG)

FVZ RT
Flange Hanger with Rod Hanger Threaded Install

3" 4" 3"
FHV3 RT FHV4 RT FHZ RT

180 lbs. 180 lbs. 120 lbs.

FHV3 RT FHZ RT
FHV4 RT
Part Min. - Max.
No. Rod Size Flange Thickness
• FHV3 RT: Suspends threaded rod from bar FHV3RH4T 1 ⁄4"-20 Thread Form
1
joist's and "C" purlin's. FHV3RH6T 3 ⁄8"-16 Thread Form 1 ⁄16" - ⁄4"
• FHV4 RT: Extra long clip suspends threaded FHV3RH6 * 13 ⁄32" Thru Hole for ⁄4" or ⁄8" Threaded Rod
3
1
rod from bar joist's. FHV4RH4T 1 ⁄4"-20 Thread Form
• FHZ RT: Angled clip suspends threaded rod FHV4RH6T 3 ⁄8"-16 Thread Form 1 ⁄16" - ⁄4"
1
from "Z" purlin's. 13 ⁄32" Thru Hole for ⁄4" or ⁄8" Threaded Rod
1
3
• Compatible with many industry standard FHV4RH6 * 1
installation tools. FHZRH4T ⁄4"-20 Thread Form
1
• Material: Spring Steel FHZRH6T 3 ⁄8"-16 Thread Form 1 ⁄16" - ⁄4"
1
3
• Finish: Silva-Guard FHZRTH6 * 13 ⁄32" Thru Hole for ⁄4" or ⁄8" Threaded Rod
* Nuts sold separately
AB
Angle Bracket

• Accepts wire, chain and rod
drops from concrete or wood.
HS -1 • Material: Steel
• Finish: Pregalvanized

HS -2

Part HS - 1 HS - 2
No.
160 lbs
AB04 9 ⁄32" (7.1mm) 9 ⁄32" (7.1mm)
AB06 9 ⁄32" (7.1mm) 13 ⁄32" (10.3mm)
