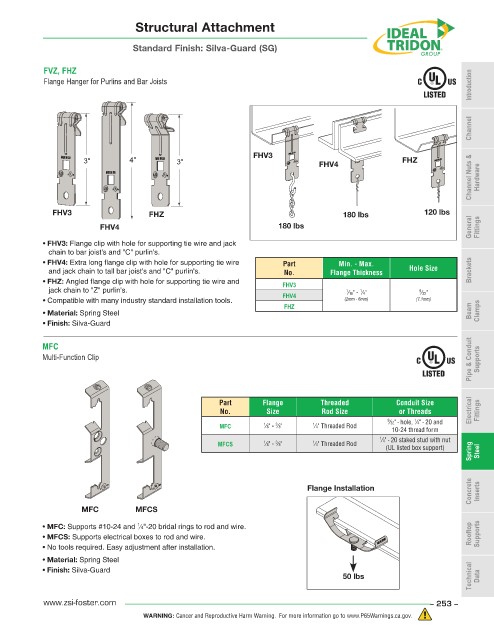

P. 253

Structural Attachment


                                  Standard Finish: Silva-Guard (SG)

            FVZ, FHZ
                                                                                                                      Introduction
            Flange Hanger for Purlins and Bar Joists




                                                                                                                      Channel



                                                                FHV3
                                                                                                                      Channel Nuts &   Hardware
                      3"         4"          3"                                 FHV4                 FHZ





              FHV3                    FHZ                                             180 lbs             120 lbs
                          FHV4                                        180 lbs                                         General   Fittings

            • FHV3: Flange clip with hole for supporting tie wire and jack
             chain to bar joist's and "C" purlin's.
            • FHV4: Extra long flange clip with hole for supporting tie wire   Part    Min. - Max.
             and jack chain to tall bar joist's and "C" purlin's.      No.         Flange Thickness   Hole Size       Brackets
            • FHZ: Angled flange clip with hole for supporting tie wire and   FHV3
             jack chain to "Z" purlin's.                                               1 ⁄16" -  ⁄4"     9 ⁄32"
                                                                                          1
            • Compatible with many industry standard installation tools.  FHV4        (2mm - 6mm)       (7.1mm)
                                                                       FHZ
            • Material: Spring Steel                                                                                  Beam   Clamps
            • Finish: Silva-Guard

                                                                                                                      Pipe & Conduit   Supports
            MFC
            Multi-Function Clip






                                                       Part       Flange        Threaded           Conduit Size
                                                        No.        Size          Rod Size           or Threads        Electrical   Fittings
                                                                                                        1
                                                                                                 9 ⁄32" - hole,  ⁄4" - 20 and
                                                                     3
                                                       MFC        1 ⁄8" -  ⁄8"  1 ⁄4" Threaded Rod
                                                                                                  10-24 thread form
                                                                                               1 ⁄4" - 20 staked stud with nut
                                                                     3
                                                       MFCS       1 ⁄8" -  ⁄8"  1 ⁄4" Threaded Rod
                                                                                                 (UL listed box support)  Spring   Steel
                                                                                                                      Concrete   Inserts
                                                                             Flange Installation

                     MFC           MFCS

            • MFC: Supports #10-24 and  ⁄4"-20 bridal rings to rod and wire.
                                   1
            • MFCS: Supports electrical boxes to rod and wire.                                                        Rooftop   Supports
            • No tools required. Easy adjustment after installation.
            • Material: Spring Steel
            • Finish: Silva-Guard
                                                                                      50 lbs                          Technical   Data

            www.zsi-foster.com                                                                              – 253 –
