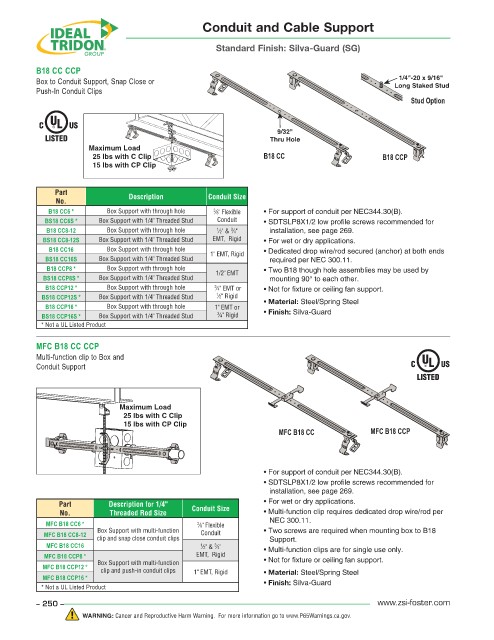

Page 250 - ZSi-Foster Product Catalog

Conduit and Cable Support

Standard Finish: Silva-Guard (SG)

B18 CC CCP
Box to Conduit Support, Snap Close or 1/4"-20 x 9/16"
Push-In Conduit Clips Long Staked Stud
Stud Option

9/32"
Thru Hole
Maximum Load
25 lbs with C Clip B18 CC B18 CCP
15 lbs with CP Clip

Part
No. Description Conduit Size
B18 CC6 * Box Support with through hole 3 ⁄8" Flexible • For support of conduit per NEC344.30(B).
BS18 CC6S * Box Support with 1/4" Threaded Stud Conduit • SDTSLP8X1/2 low profile screws recommended for
3
B18 CC8-12 Box Support with through hole 1 ⁄2" & ⁄4" installation, see page 269.
BS18 CC8-12S Box Support with 1/4" Threaded Stud EMT, Rigid • For wet or dry applications.
B18 CC16 Box Support with through hole 1" EMT, Rigid • Dedicated drop wire/rod secured (anchor) at both ends
BS18 CC16S Box Support with 1/4" Threaded Stud required per NEC 300.11.
B18 CCP8 * Box Support with through hole 1/2" EMT • Two B18 though hole assemblies may be used by
BS18 CCP8S * Box Support with 1/4" Threaded Stud mounting 90° to each other.
B18 CCP12 * Box Support with through hole ⁄4" EMT or • Not for fixture or ceiling fan support.
3
BS18 CCP12S * Box Support with 1/4" Threaded Stud 1 ⁄2" Rigid • Material: Steel/Spring Steel
B18 CCP16 * Box Support with through hole 1" EMT or
3
BS18 CCP16S * Box Support with 1/4" Threaded Stud ⁄4" Rigid • Finish: Silva-Guard
* Not a UL Listed Product

MFC B18 CC CCP
Multi-function clip to Box and
Conduit Support

Maximum Load
25 lbs with C Clip
15 lbs with CP Clip
MFC B18 CC MFC B18 CCP

• For support of conduit per NEC344.30(B).
• SDTSLP8X1/2 low profile screws recommended for
installation, see page 269.
Part Description for 1/4" • For wet or dry applications.
No. Threaded Rod Size Conduit Size • Multi-function clip requires dedicated drop wire/rod per
NEC 300.11.
MFC B18 CC6 * 3 ⁄8" Flexible
Box Support with multi-function • Two screws are required when mounting box to B18
MFC B18 CC8-12 clip and snap close conduit clips Conduit Support.
3
MFC B18 CC16 1 ⁄2" & ⁄4" • Multi-function clips are for single use only.
MFC B18 CCP8 * EMT, Rigid
Box Support with multi-function • Not for fixture or ceiling fan support.
MFC B18 CCP12 * clip and push-in conduit clips 1" EMT, Rigid • Material: Steel/Spring Steel
MFC B18 CCP16 *
* Not a UL Listed Product • Finish: Silva-Guard

– 250 – www.zsi-foster.com
