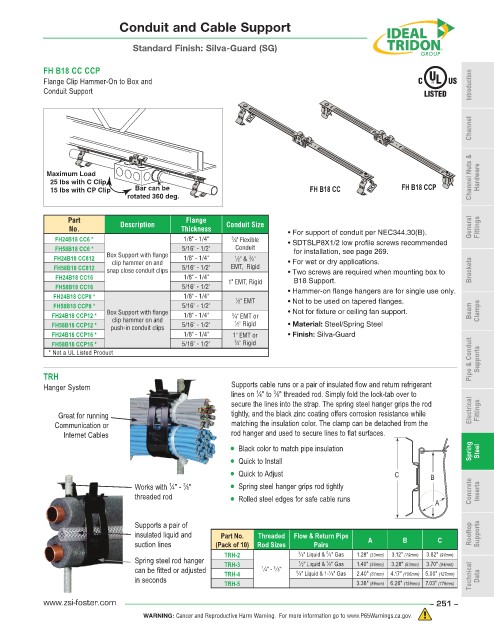

Page 251 - ZSi-Foster Product Catalog

Conduit and Cable Support

Standard Finish: Silva-Guard (SG)

FH B18 CC CCP
Flange Clip Hammer-On to Box and Introduction
Conduit Support

Channel

Maximum Load Channel Nuts & Hardware
25 lbs with C Clip
15 lbs with CP Clip Bar can be FH B18 CC FH B18 CCP
rotated 360 deg.

Part Description Flange Conduit Size
No. Thickness • For support of conduit per NEC344.30(B). General Fittings
FH24B18 CC6 * 1/8" - 1/4" 3 ⁄8" Flexible • SDTSLP8X1/2 low profile screws recommended
FH58B18 CC6 * 5/16" - 1/2" Conduit for installation, see page 269.
FH24B18 CC812 Box Support with flange 1/8" - 1/4" 1 ⁄2" & ⁄4" • For wet or dry applications.
3
clip hammer on and
FH58B18 CC812 snap close conduit clips 5/16" - 1/2" EMT, Rigid • Two screws are required when mounting box to Brackets
FH24B18 CC16 1/8" - 1/4" 1" EMT, Rigid B18 Support.
FH58B18 CC16 5/16" - 1/2" • Hammer-on flange hangers are for single use only.
FH24B18 CCP8 * 1/8" - 1/4" 1 ⁄2" EMT • Not to be used on tapered flanges.
FH58B18 CCP8 * 5/16" - 1/2"
FH24B18 CCP12 * Box Support with flange 1/8" - 1/4" 3 ⁄4" EMT or • Not for fixture or ceiling fan support. Beam Clamps
clip hammer on and
FH58B18 CCP12 * push-in conduit clips 5/16" - 1/2" 1 ⁄2" Rigid • Material: Steel/Spring Steel
FH24B18 CCP16 * 1/8" - 1/4" 1" EMT or • Finish: Silva-Guard
FH58B18 CCP16 * 5/16" - 1/2" 3 ⁄4" Rigid
* Not a UL Listed Product Pipe & Conduit Supports

TRH
Hanger System Supports cable runs or a pair of insulated flow and return refrigerant
1
lines on ⁄4" to ⁄8" threaded rod. Simply fold the lock-tab over to
3
secure the lines into the strap. The spring steel hanger grips the rod
Great for running tightly, and the black zinc coating offers corrosion resistance while Electrical Fittings
Communication or matching the insulation color. The clamp can be detached from the
Internet Cables rod hanger and used to secure lines to flat surfaces.
• • Black color to match pipe insulation Spring Steel
• • Quick to Install
• • Quick to Adjust C B

3
1
Works with ⁄4" - ⁄8" • • Spring steel hanger grips rod tightly Concrete
threaded rod • • Rolled steel edges for safe cable runs A Inserts
Supports a pair of
insulated liquid and Part No. Threaded Flow & Return Pipe Rooftop Supports
suction lines (Pack of 10) Rod Sizes Pairs A B C
5
TRH-2 3 ⁄8" Liquid & ⁄8" Gas 1.28" (33mm) 3.12" (79mm) 3.82" (97mm)
Spring steel rod hanger TRH-3 1 ⁄2" Liquid & ⁄8" Gas 1.40" (36mm) 3.28" (83mm) 3.70" (94mm)
7
3
can be fitted or adjusted TRH-4 1 ⁄4" - ⁄8" 5 ⁄8" Liquid & 1- ⁄8" Gas 2.40" (61mm) 4.17" (106mm) 5.00" (127mm)
1
in seconds Technical Data
TRH-5 3.38" (86mm) 6.26" (159mm) 7.03" (179mm)
www.zsi-foster.com – 251 –
