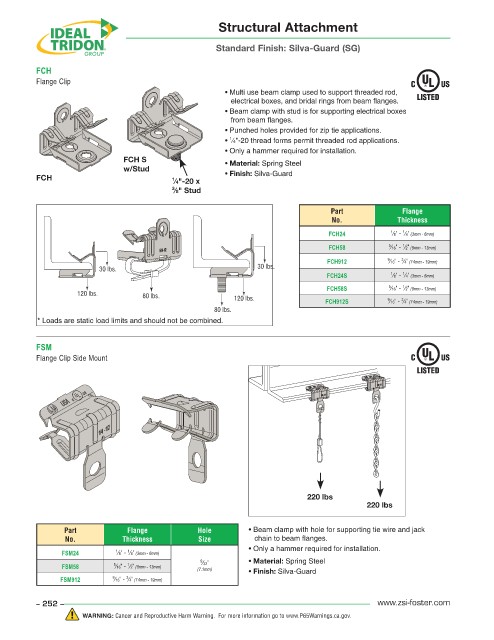

Page 252 - ZSi-Foster Product Catalog

Structural Attachment

Standard Finish: Silva-Guard (SG)

FCH
Flange Clip
• Multi use beam clamp used to support threaded rod,
electrical boxes, and bridal rings from beam flanges.
• Beam clamp with stud is for supporting electrical boxes
from beam flanges.
• Punched holes provided for zip tie applications.
1
• ⁄4"-20 thread forms permit threaded rod applications.
• Only a hammer required for installation.
FCH S • Material: Spring Steel
w/Stud
FCH 1 ⁄4"-20 x • Finish: Silva-Guard
3 ⁄8" Stud

Part Flange
No. Thickness

1
FCH24 1 ⁄8" - ⁄4" (3mm - 6mm)
1
FCH58 5 ⁄16" - ⁄2" (8mm - 13mm)
3
FCH912 9 ⁄16" - ⁄4" (14mm - 19mm)
30 lbs. 30 lbs.
FCH24S 1 ⁄8" - ⁄4" (3mm - 6mm)
1
1
FCH58S 5 ⁄16" - ⁄2" (8mm - 13mm)
120 lbs. 80 lbs.
120 lbs.
3
FCH912S 9 ⁄16" - ⁄4" (14mm - 19mm)
80 lbs.
* Loads are static load limits and should not be combined.
FSM
Flange Clip Side Mount

220 lbs
220 lbs

Part Flange Hole • Beam clamp with hole for supporting tie wire and jack
No. Thickness Size chain to beam flanges.
• Only a hammer required for installation.
1
FSM24 1 ⁄8" - ⁄4" (3mm - 6mm)
9 ⁄32" • Material: Spring Steel
1
FSM58 5 ⁄16" - ⁄2" (8mm - 13mm) (7.1mm) • Finish: Silva-Guard
3
FSM912 9 ⁄16" - ⁄4" (14mm - 19mm)
– 252 – www.zsi-foster.com
WARNING: Cancer and Reproductive Harm Warning. For more information go to www.P65Warnings.ca.gov.
