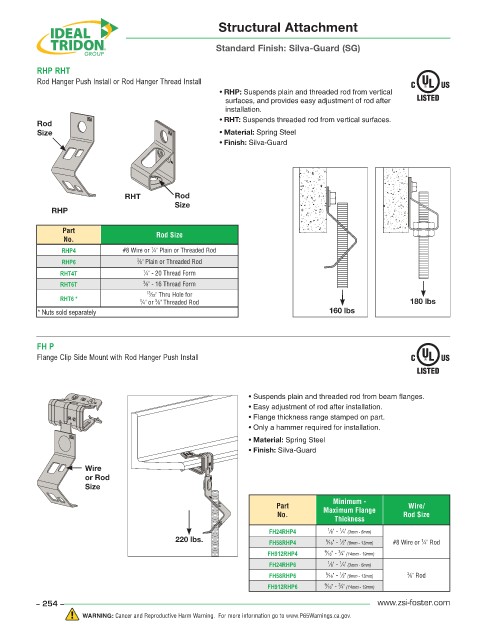

Page 254 - ZSi-Foster Product Catalog

Structural Attachment

Standard Finish: Silva-Guard (SG)

RHP RHT
Rod Hanger Push Install or Rod Hanger Thread Install
• RHP: Suspends plain and threaded rod from vertical
surfaces, and provides easy adjustment of rod after
installation.
Rod • RHT: Suspends threaded rod from vertical surfaces.
Size • Material: Spring Steel
• Finish: Silva-Guard

RHT Rod
Size
RHP

Part Rod Size
No.
1
RHP4 #8 Wire or ⁄4" Plain or Threaded Rod
RHP6 3 ⁄8" Plain or Threaded Rod
RHT4T 1 ⁄4" - 20 Thread Form
RHT6T 3 ⁄8" - 16 Thread Form
13 ⁄32" Thru Hole for
RHT6 * 1 ⁄4" or ⁄8" Threaded Rod 180 lbs
3
* Nuts sold separately 160 lbs

FH P
Flange Clip Side Mount with Rod Hanger Push Install

• Suspends plain and threaded rod from beam flanges.
• Easy adjustment of rod after installation.
• Flange thickness range stamped on part.
• Only a hammer required for installation.
• Material: Spring Steel
• Finish: Silva-Guard

Wire
or Rod
Size

Minimum -
Part Wire/
No. Maximum Flange Rod Size
Thickness
1
FH24RHP4 1 ⁄8" - ⁄4" (3mm - 6mm)
220 lbs. FH58RHP4 5 ⁄16" - ⁄2" (8mm - 13mm) #8 Wire or ⁄4" Rod
1
1
3
FH912RHP4 9 ⁄16" - ⁄4" (14mm - 19mm)
1
FH24RHP6 1 ⁄8" - ⁄4" (3mm - 6mm)
1
FH58RHP6 5 ⁄16" - ⁄2" (8mm - 13mm) 3 ⁄8" Rod
3
FH912RHP6 9 ⁄16" - ⁄4" (14mm - 19mm)
