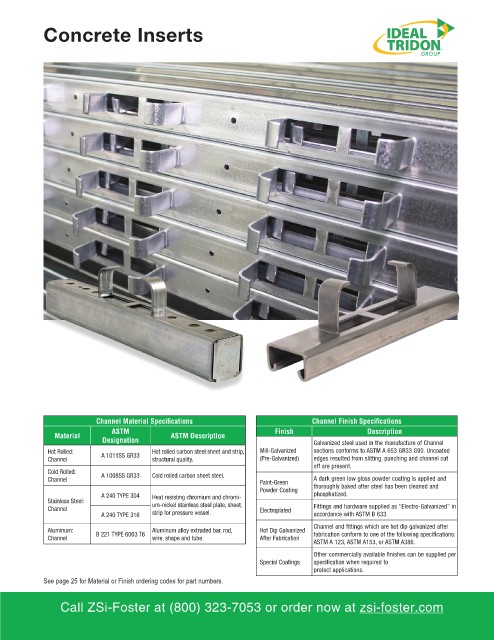

Page 275 - ZSi-Foster Product Catalog

Concrete Inserts

Channel Material Specifications Channel Finish Specifications
ASTM Finish Description
Material ASTM Description
Designation Galvanized steel used in the manufacture of Channel
Hot Rolled: A 1011SS GR33 Hot rolled carbon steel sheet and strip, Mill-Galvanized sections conforms to ASTM A 653 GR33 G90. Uncoated
Channel structural quality. (Pre-Galvanized) edges resulted from slitting, punching and channel cut
off are present.
Cold Rolled: A 1008SS GR33 Cold rolled carbon sheet steel.
Channel Paint-Green A dark green low gloss powder coating is applied and
Powder Coating thoroughly baked after steel has been cleaned and
A 240 TYPE 304 Heat resisting chromium and chromi- phosphatized.
Stainless Steel: um-nickel stainless steel plate, sheet,
Channel Electroplated Fittings and hardware supplied as "Electro-Galvanized" in
A 240 TYPE 316 strip for pressure vessel. accordance with ASTM B 633.
Channel and fittings which are hot dip galvanized after
Aluminum: B 221 TYPE 6063 T6 Aluminum alloy extruded bar, rod, Hot Dip Galvanized fabrication conform to one of the following specifications:
Channel wire, shape and tube. After Fabrication
ASTM A 123, ASTM A153, or ASTM A386.
Other commercially available finishes can be supplied per
Special Coatings specification when required to
protect applications.
See page 25 for Material or Finish ordering codes for part numbers.
