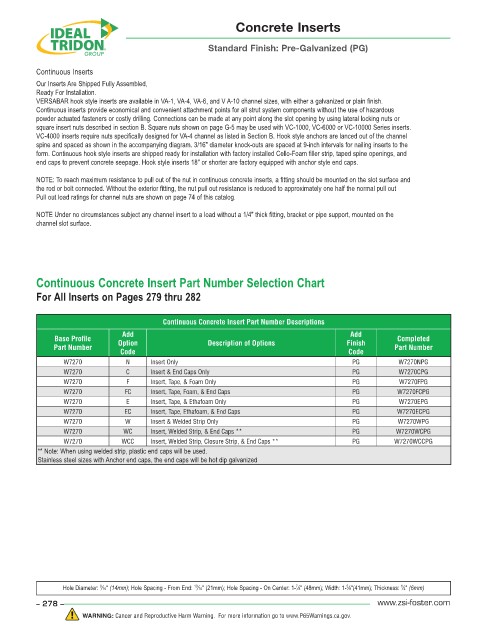

Concrete Inserts


                                                     Standard Finish: Pre-Galvanized (PG)

          Continuous Inserts
          Our Inserts Are Shipped Fully Assembled,
          Ready For Installation.
          VERSABAR hook style inserts are available in VA-1, VA-4, VA-6, and V A-10 channel sizes, with either a galvanized or plain finish.
          Continuous inserts provide economical and convenient attachment points for all strut system components without the use of hazardous
          powder actuated fasteners or costly drilling. Connections can be made at any point along the slot opening by using lateral locking nuts or
          square insert nuts described in section B. Square nuts shown on page G-5 may be used with VC-1000, VC-6000 or VC-10000 Series inserts.
          VC-4000 inserts require nuts specifically designed for VA-4 channel as listed in Section B. Hook style anchors are lanced out of the channel
          spine and spaced as shown in the accompanying diagram. 3/16" diameter knock-outs are spaced at 9-inch intervals for nailing inserts to the
          form. Continuous hook style inserts are shipped ready for installation with factory installed Cello-Foam filler strip, taped spine openings, and
          end caps to prevent concrete seepage. Hook style inserts 18" or shorter are factory equipped with anchor style end caps.

          NOTE: To reach maximum resistance to pull out of the nut in continuous concrete inserts, a fitting should be mounted on the slot surface and
          the rod or bolt connected. Without the exterior fitting, the nut pull out resistance is reduced to approximately one half the normal pull out
          Pull out load ratings for channel nuts are shown on page 74 of this catalog.
          NOTE Under no circumstances subject any channel insert to a load without a 1/4" thick fitting, bracket or pipe support, mounted on the
          channel slot surface.







          Continuous Concrete Insert Part Number Selection Chart
          For All Inserts on Pages 279 thru 282


                                         Continuous Concrete Insert Part Number Descriptions
                               Add                                                      Add
               Base Profile                                                                        Completed
              Part Number     Option                Description of Options             Finish      Part Number
                               Code                                                    Code
                 W7270          N     Insert Only                                       PG          W7270NPG
                 W7270          C     Insert & End Caps Only                            PG          W7270CPG
                 W7270          F     Insert, Tape, & Foam Only                         PG          W7270FPG
                 W7270          FC    Insert, Tape, Foam, & End Caps                    PG         W7270FCPG
                 W7270          E     Insert, Tape, & Ethafoam Only                     PG          W7270EPG
                 W7270          EC    Insert, Tape, Ethafoam, & End Caps                PG         W7270ECPG
                 W7270          W     Insert & Welded Strip Only                        PG          W7270WPG
                 W7270          WC    Insert, Welded Strip, & End Caps **               PG         W7270WCPG
                 W7270         WCC    Insert, Welded Strip, Closure Strip, & End Caps **  PG       W7270WCCPG
          ** Note: When using welded strip, plastic end caps will be used.
          Stainless steel sizes with Anchor end caps, the end caps will be hot dip galvanized


















                                                                                                    1
                                                                          7
                                                                                       5
                          9
                 Hole Diameter:  ⁄16" (14mm); Hole Spacing - From End:  ⁄16" (21mm); Hole Spacing - On Center: 1- ⁄8" (48mm); Width: 1- ⁄8"(41mm); Thickness:  ⁄4" (6mm)
