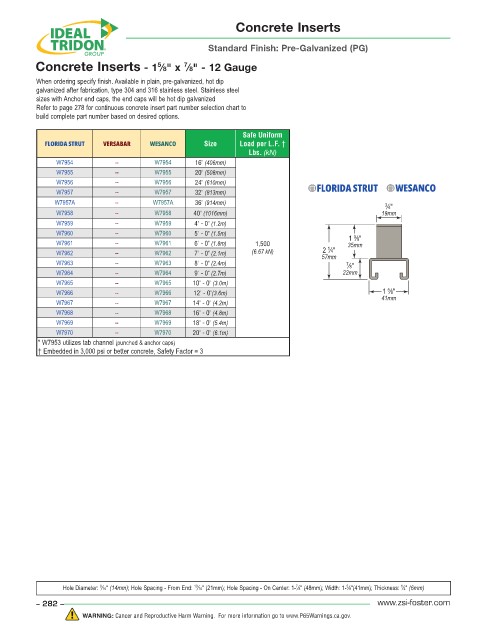

Page 282 - ZSi-Foster Product Catalog

Concrete Inserts

Standard Finish: Pre-Galvanized (PG)
5
7
Concrete Inserts - 1 ⁄8" x ⁄8" - 12 Gauge
When ordering specify finish. Available in plain, pre-galvanized, hot dip
galvanized after fabrication, type 304 and 316 stainless steel. Stainless steel
sizes with Anchor end caps, the end caps will be hot dip galvanized
Refer to page 278 for continuous concrete insert part number selection chart to
build complete part number based on desired options.

Safe Uniform
FLORIDA STRUT VERSABAR WESANCO Size Load per L.F. †
Lbs. (kN)
W7954 -- W7954 16" (406mm)
W7955 -- W7955 20" (508mm)
W7956 -- W7956 24" (610mm)
W7957 -- W7957 32" (813mm)
W7957A -- W7957A 36" (914mm) 3 ⁄4"
W7958 -- W7958 40" (1016mm) 19mm
W7959 -- W7959 4' - 0" (1.2m)
W7960 -- W7960 5' - 0" (1.5m) 1 ⁄8"
3
W7961 -- W7961 6' - 0" (1.8m) 1,500 35mm
2 ⁄4"
1
W7962 -- W7962 7' - 0" (2.1m) (6.67 kN) 57mm
W7963 -- W7963 8' - 0" (2.4m) 7 ⁄8"
W7964 -- W7964 9' - 0" (2.7m) 22mm
W7965 -- W7965 10' - 0" (3.0m)
1 ⁄8"
5
W7966 -- W7966 12' - 0"(3.6m) 41mm
W7967 -- W7967 14' - 0" (4.2m)
W7968 -- W7968 16' - 0" (4.8m)
W7969 -- W7969 18' - 0" (5.4m)
W7970 -- W7970 20' - 0" (6.1m)
* W7953 utilizes tab channel (punched & anchor caps)
† Embedded in 3,000 psi or better concrete, Safety Factor = 3

5
1
Hole Diameter: ⁄16" (14mm); Hole Spacing - From End: ⁄16" (21mm); Hole Spacing - On Center: 1- ⁄8" (48mm); Width: 1- ⁄8"(41mm); Thickness: ⁄4" (6mm)
13
9
7
