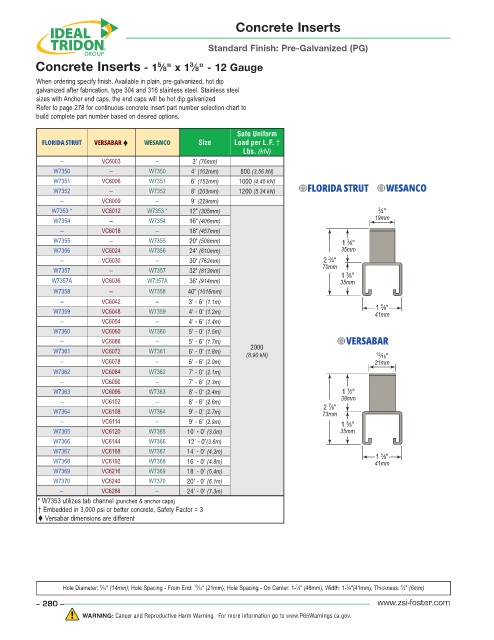

Page 280 - ZSi-Foster Product Catalog

Concrete Inserts

Standard Finish: Pre-Galvanized (PG)
3
5
Concrete Inserts - 1 ⁄8" x 1 ⁄8" - 12 Gauge
When ordering specify finish. Available in plain, pre-galvanized, hot dip
galvanized after fabrication, type 304 and 316 stainless steel. Stainless steel
sizes with Anchor end caps, the end caps will be hot dip galvanized
Refer to page 278 for continuous concrete insert part number selection chart to
build complete part number based on desired options.

Safe Uniform
FLORIDA STRUT VERSABAR  WESANCO Size Load per L.F. †
Lbs. (kN)
-- VC6003 -- 3" (76mm)
W7350 -- W7350 4" (102mm) 800 (3.56 kN)
W7351 VC6006 W7351 6" (152mm) 1000 (4.45 kN)
W7352 -- W7352 8" (203mm) 1200 (5.34 kN)
-- VC6009 -- 9" (229mm)
W7353 * VC6012 W7353 * 12" (305mm) 3 ⁄4"
W7354 -- W7354 16" (406mm) 19mm
-- VC6018 -- 18" (457mm)
W7355 -- W7355 20" (508mm) 1 ⁄8"
3
W7356 VC6024 W7356 24" (610mm) 35mm
3
-- VC6030 -- 30" (762mm) 2 ⁄4"
W7357 -- W7357 32" (813mm) 70mm 1 ⁄8"
3
W7357A VC6036 W7357A 36" (914mm) 35mm
W7358 -- W7358 40" (1016mm)
-- VC6042 -- 3' - 6" (1.1m) 5
1 ⁄8"
W7359 VC6048 W7359 4' - 0" (1.2m) 41mm
-- VC6054 -- 4' - 6" (1.4m)
W7360 VC6060 W7360 5' - 0" (1.5m)
-- VC6066 -- 5' - 6" (1.7m)
W7361 VC6072 W7361 6' - 0" (1.8m) 2000
(8.90 kN) 13 ⁄16"
-- VC6078 -- 6' - 6" (2.0m) 21mm
W7362 VC6084 W7362 7' - 0" (2.1m)
-- VC6090 -- 7' - 6" (2.3m)
1
W7363 VC6096 W7363 8' - 0" (2.4m) 1 ⁄2"
-- VC6102 -- 8' - 6" (2.6m) 2 ⁄8" 38mm
7
W7364 VC6108 W7364 9' - 0" (2.7m) 73mm
-- VC6114 -- 9' - 6" (2.9m) 1 ⁄8"
3
W7365 VC6120 W7365 10' - 0" (3.0m) 35mm
W7366 VC6144 W7366 12' - 0"(3.6m)
W7367 VC6168 W7367 14' - 0" (4.2m) 1 ⁄8"
5
W7368 VC6192 W7368 16' - 0" (4.8m) 41mm
W7369 VC6216 W7369 18' - 0" (5.4m)
W7370 VC6240 W7370 20' - 0" (6.1m)
-- VC6288 -- 24' - 0" (7.3m)
* W7353 utilizes tab channel (punched & anchor caps)
† Embedded in 3,000 psi or better concrete, Safety Factor = 3
 Versabar dimensions are different

1
9
13
Hole Diameter: ⁄16" (14mm); Hole Spacing - From End: ⁄16" (21mm); Hole Spacing - On Center: 1- ⁄8" (48mm); Width: 1- ⁄8"(41mm); Thickness: ⁄4" (6mm)
7
5
– 280 – www.zsi-foster.com
